EMS System(RS & CS)

RI & CI

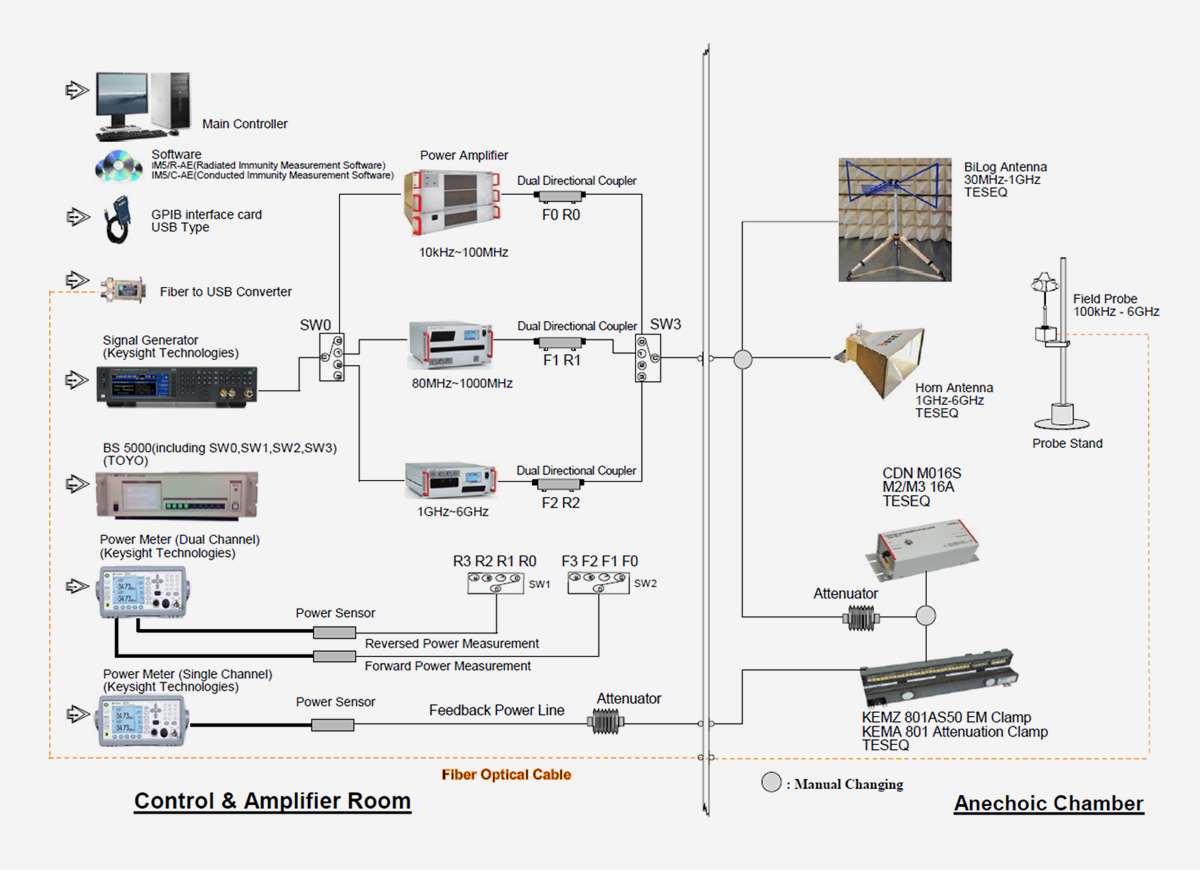

A basic system configuration for the tests of RI (Radiated Immunity) and CI (Conducted Immunity) from 10kHz to 6GHz in one control PC.

* Upgrades from existing systems and customization are possible.

RS(Radiated Immunity System)

  • Test Standard
    IEC61000-4-3 Ed3
  • Automobile
    2004/104/EC, ISO11452-1/2, SAE,JASO
  • Field Strength
    ≥ 10V/m across 1m-3m.
  • Frequency
    80MHz-6GHz (Max. 40GHz)

CS(Conducted Immunity System)

  • Test Standard
    IEC61000-4-6
  • Automobile
    (BCI) 2004/104/EC and ISO11452-4
  • Test Level
    ≥ 10V (EMF)
  • Frequency
    150kHz-80MHz (9kHz-230MHz)
