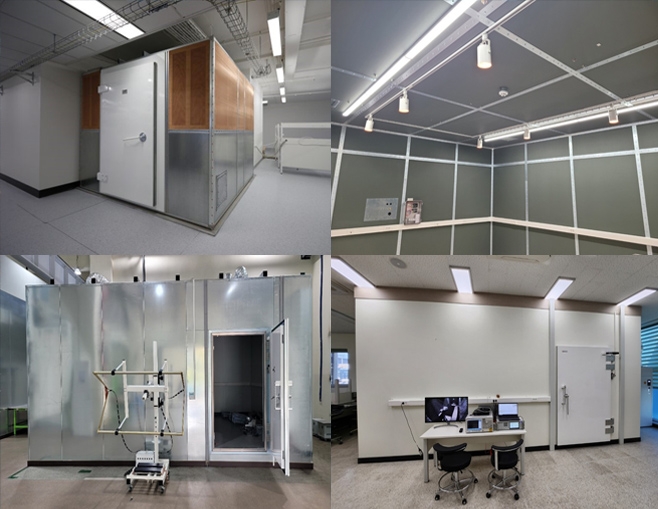

RF Shield Room
14kHz – 40GHz 대역 까지의 전기 및 전파관련 노이즈 유입/유출을 차단하여 안전하고 적합한 시험 환경을 제공합니다.
Shield Room
14kHz – 40GHz대역까지의 전기 및 전파관련 노이즈 유입/유출을 차단하여 안전하고 적합한 시험환경을 제공합니다.

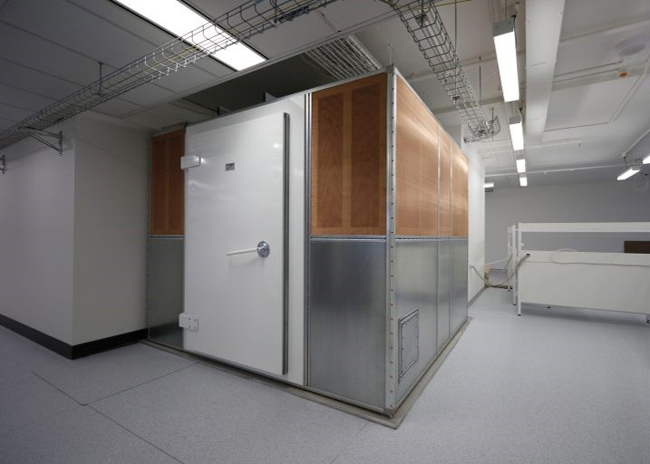

Screen type Shield Room

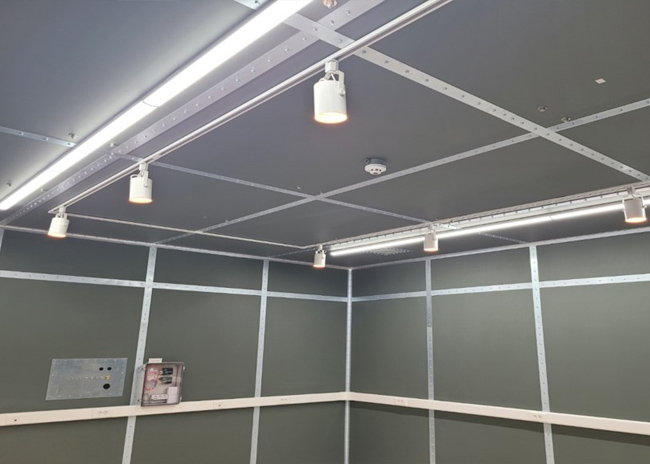

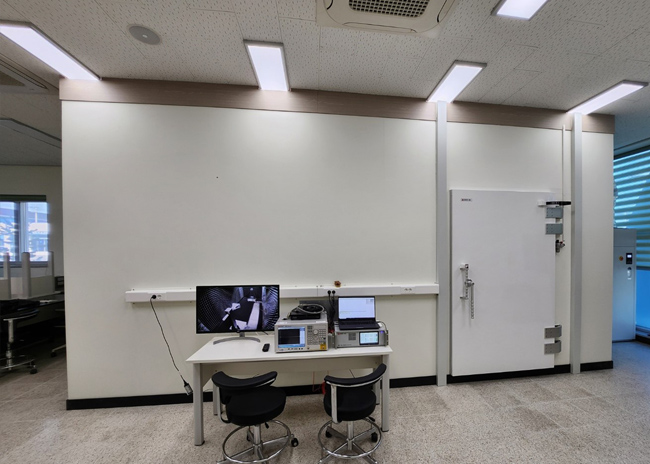

Interior of Modular Panel type

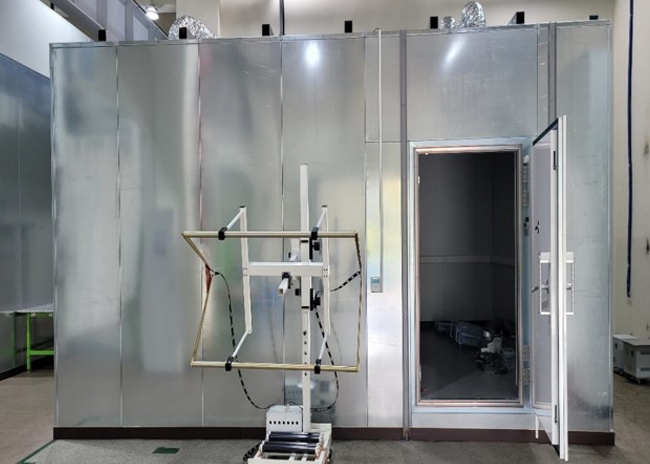

Modular Pan type
Interior of Modular Pan type
| Shield Room Specifications | ||
|---|---|---|
| External dimensions | • 고객 요구사항에 대한 주문제작(ex. 3m x 3m, 3m x 6m, 6m x 6m) | |
| Frequency range | • 14 kHz to 18 GHz, or 40 GHz | |
| Shielding Effectiveness | • IEEE Std. 299 | |
| Type | Modular Pan | • Modular Pan(아연도금 강판) |
| Modular Panel | • Modular Panel(아연도금 강판+파티클보드) | |
| Screen type | • Mesh:Brass & modular | |
| Shielding Door | • 1200(W)*2000(H) / 주문제작 및 확장 가능 (Swing Door 및 Auto Sliding Door) | |
| RF Filter | • 전원 및 통신필터, 소방필터 구성 | |
| Isolation Transformer | • 누설전류 방지 및 절연, 안정적인 전원 공급 | |
| Access Panel | • Optic feed-through, N(P) type, FSMA, ST type 등 | |
| Waveguide Air Vent | • 공조설비 급/배기 시스템 대한 Honeycomb | |
| Utility | • 전등,전열설비 / 통신 시스템 / 공조시스템 / 소방시스템 / EUT테이블 / 내외부 마감 인테리어 | |
