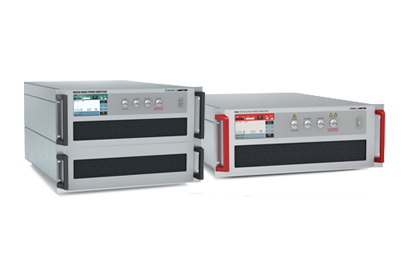

RF Power Amplifier
* 총 제품 수 7 개
AMPLIFIERS - SOLID STATE
EFT/버스트(4.8kV), 서지 조합파(6.6kV), 딥 인터럽트 및 변형, 링파(6.6kV) 및 자기장 테스트를 위한 다기능 발생기. 임펄스 모듈 선택은 테스트 요구 사항에 따라 다릅니다.
-

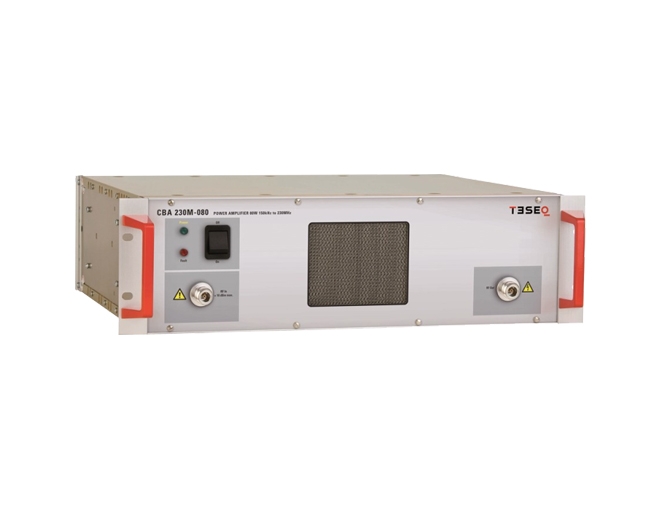

CBA230M A Series
Designed specifically for conducted EMC testing, this mismatch tolerant Class A amplifier series is ideally suited to provide power into a CDN for IEC 61000-4-6 conducted susceptibility testing up to and beyond the normal 10 V emf test level. The Class A design ensures a high reliability, low distortion linear performance across the frequency range. This design also ensures that the amplifiers will continue to operate at full power even when presented with an open or short circuit at its output. The units are powered from a switched mode power supply for high efficiency, high power factor and wide voltage range operation. Aiir-cooled with integral fans, and are protected against faulty cooling by excess temperature sensing. Front panel indicators are provided to indicate over-temperature.
-

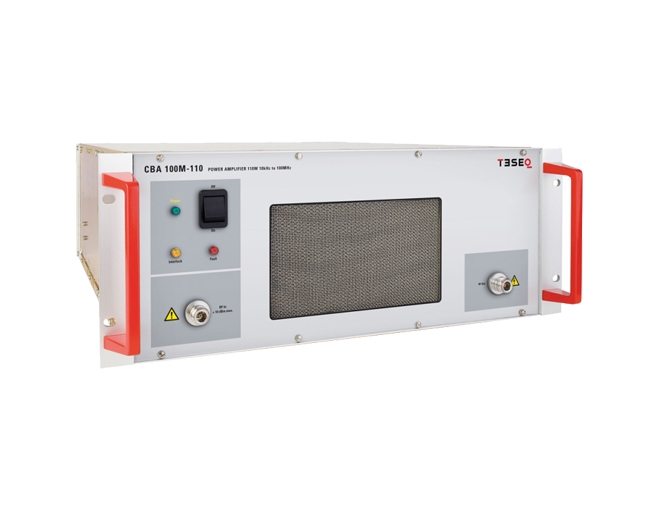

CBA100M A Series
This low frequency amplifier series can be used in conjunction with other amplifiers from the Teseq range to cover the entire frequency range from 10 kHz to 40 GHz with convenient frequency break points allowing you to optimise the power level in each range. The Class A design ensures a high reliability, low distortion linear performance across the frequency range. This design also ensures that the amplifier series will continue to operate at full power even when presented with an open or short circuit at its output. The units are powered from a switched mode power supply for high efficiency, high power factor and wide voltage range operation. Air-cooled with integral fans, and are protected against faulty cooling by excess temperature sensing. A safety interlock connector is provided, which the user can short circuit to ground, to put the amplifiers into standby mode. Front panel indicators are provided to indicate over-temperature and rf interlock operation.
-

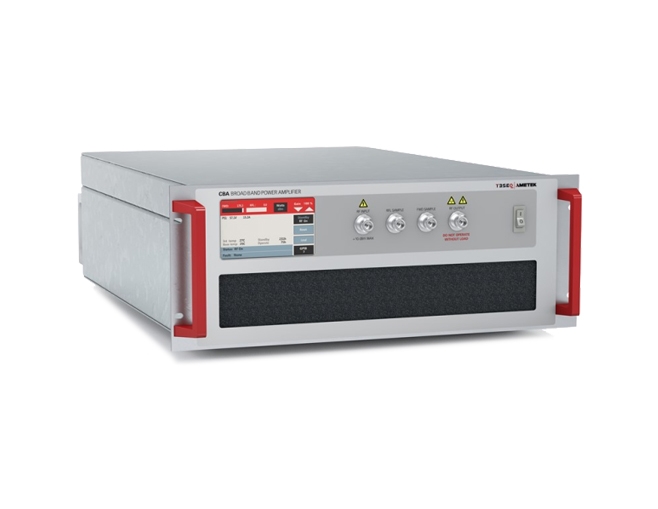

CBA6G D Series
Class A, high power density, design has allowed us to produce a 1.0 GHz to 6 GHz amplifier series with power levels from 30 to 400 watts P1dB. These amplifiers are ideal for RF immunity testing in a GTEM Cell or with a wide range of available horn antenna such as the Teseq BHA range or readily integrated with an NSG 6000 to form part of a broadband RF test system. The touch screen colour display gives an immediate visual indication of forward and reverse power along with the current operating status of the amplifier and access to diagnostic information such as gate current and heatsink temperature. Fan speed adjusts depending on the heatsink temperature thus ensuring the minimum audio noise level possible in the operating environment. The inbuilt calibrated forward power coupler provides a quick and easy way to monitor forward power with any power meter. Input overdrive protection prevents damage to the input devices due to accidental high input power. Multiple remote interfaces are available as standard including USB, GPIB, RS232, and Ethernet.
-

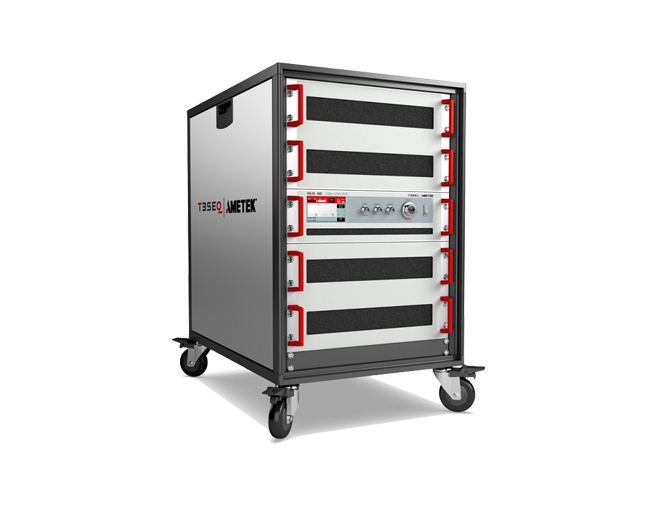

CBA4G R Series
A high-power density, design has allowed us to produce a 0.8 GHz to 4.0 GHz amplifier in a compact 20U Rack. With a minimum of 400 watts of linear power CW and 900/600 watts of saturated CW power over the frequency ranges of 1.2-1.4 GHz and 2.7-3.5 GHz. This amplifier is ideal for RF immunity testing and coupled with a wide range of available horn antenna makes this amplifier particularly suited for Radar Automotive Pulse Testing and can also be integrated with the Teseq NSG 6000 to form part of a broadband test system. The touch screen color display gives an immediate visual indication of forward and reverse power along with the current operating status of the amplifier and access to diagnostic information such as gate current and heatsink temperature. Fan speed adjusts depending on heatsink temperature thus ensuring the minimum audio noise level possible in the operating environment.The inbuilt calibrated forward power coupler provides a quick and easy way to monitor forward power with any power meter. Multiple remote interfaces are available as standard including USB, GPIB, RS232, Ethernet.
-
CBA6G R Series
A high-power density, design has allowed us to produce a 0.8 GHz to 6.0 GHz amplifier in a compact 20U Rack. With a minimum of 400/300 watts of linear power CW and 900/600 watts of saturated CW power over the frequency ranges of 1.2-1.4 GHz and 2.7-3.2 GHz. This amplifier is ideal for RF immunity testing and coupled with a wide range of available horn antenna makes this amplifier particularly suited for Radar Automotive Pulse Testing and can also be integrated with the Teseq NSG 6000 to form part of a broadband test system. The touch screen color display gives an immediate visual indication of forward and reverse power along with the current operating status of the amplifier and access to diagnostic information such as gate current and heatsink temperature. Fan speed adjusts depending on heatsink temperature thus ensuring the minimum audio noise level possible in the operating environment.The inbuilt calibrated forward power coupler provides a quick and easy way to monitor forward power with any power meter. Multiple remote interfaces are available as standard including USB, GPIB, RS232, Ethernet.
-

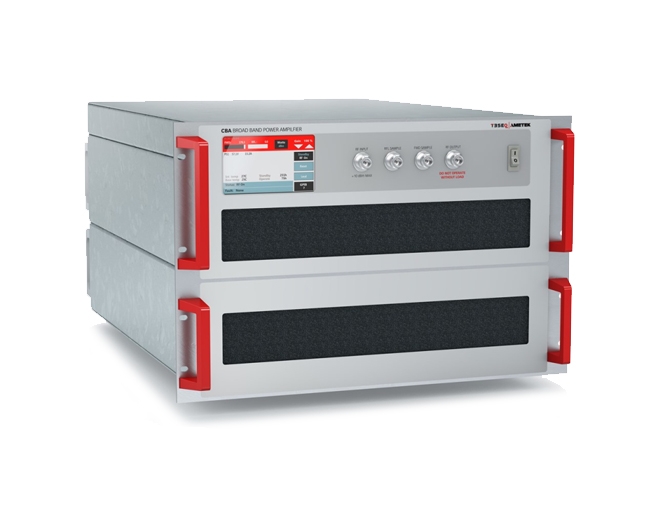

CBA4G D Series
Class A, high power density, design has allowed us to produce a 0.8 GHz to 4 GHz amplifier series with power levels from 30 to 800 watts P1dB. These amplifiers are ideal for RF immunity testing in a GTEM Cell or with a wide range of available horn antenna such as the Teseq BHA range or readily integrated with an NSG 6000 to form part of a broadband RF test system. The touch screen colour display gives an immediate visual indication of forward and reverse power along with the current operating status of the amplifier and access to diagnostic information such as gate current and heatsink temperature. Fan speed adjusts depending on the heatsink temperature thus ensuring the minimum audio noise level possible in the operating environment. The inbuilt calibrated forward power coupler provides a quick and easy way to monitor forward power with any power meter. Input overdrive protection prevents damage to the input devices due to accidental high input power. Multiple remote interfaces are available as standard including USB, GPIB, RS232, and Ethernet.
-
CBA20M6G D Series
A high power density, design has allowed us to produce a dual-band series with power levels from 30 to 50 watts P1dB, 20 MHz to 6 GHz solid-state amplifier in either a compact 4U or 7U package. This amplifier series is not only ideal for RF immunity testing to standards such as ISO11452-9 but also many 5G infostructure component tests. The touch screen colour display gives an immediate visual indication of the operating status of the amplifier and access to diagnostic information such as gate current and heatsink temperature. The fan speed adjusts depending on the heatsink temperature thus ensuring the minimum audio noise level possible in the operating environment. The dual directional calibrated coupler provides a quick and easy way to monitor forward and reflected power with any power meter. Input overdrive protection prevents damage to the input devices due to accidental high input power. Multiple remote interfaces are available as standard including USB, GPIB, RS232, and Ethernet. Amplifier gain can be controlled either remotely through one of the available interfaces or via the front panel touch screen.
