RF/EMC/EMP Shielded Door

RF/EMC/EMP protection doors fully meet the demands both from commercial and military.
Prompt maintenance service is one of the strong points of us.

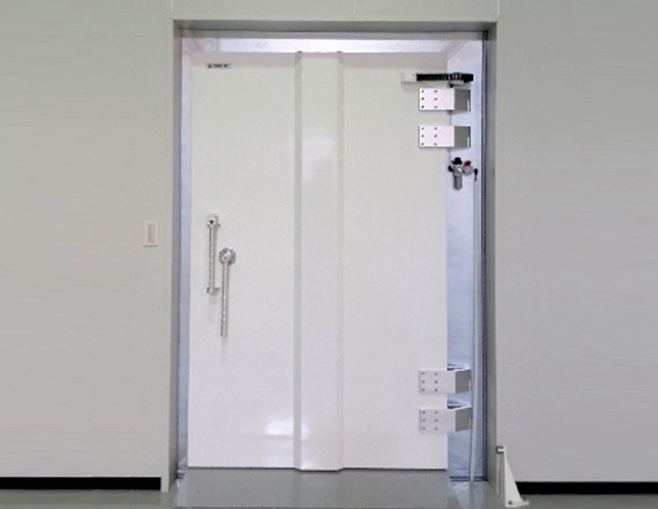

Swing Door

Semi-Auto Swing / Manual Swing
900mm x 1800mm / 1000mm x 2000mm / 1200mm x 2000mm
  • Bespoke Design and Manufacturing
  • Pneumatic /Electric Motor
  • Automatic / Manual

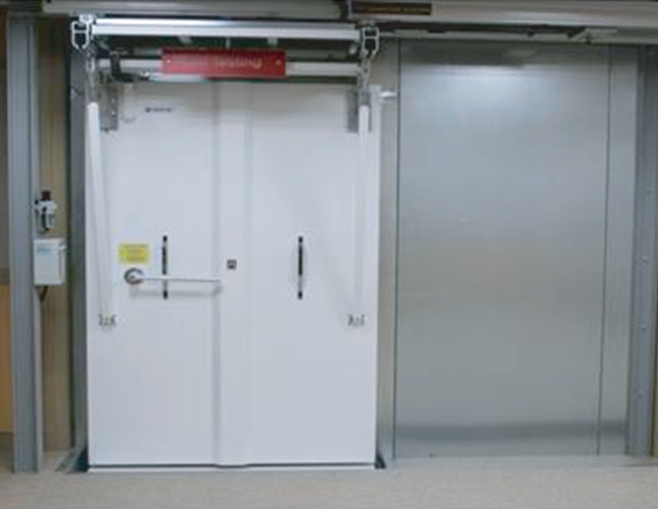

Sliding Door

Fully Automatic Sliding & Manual Sliding
2000mm x 2000mm / 3000mm x 3000mm
  • LCD Touch Panel Contro
  • Visual & Audio Alarm
  • Operation Recording
  • Safety Device (Object detecting sensor)

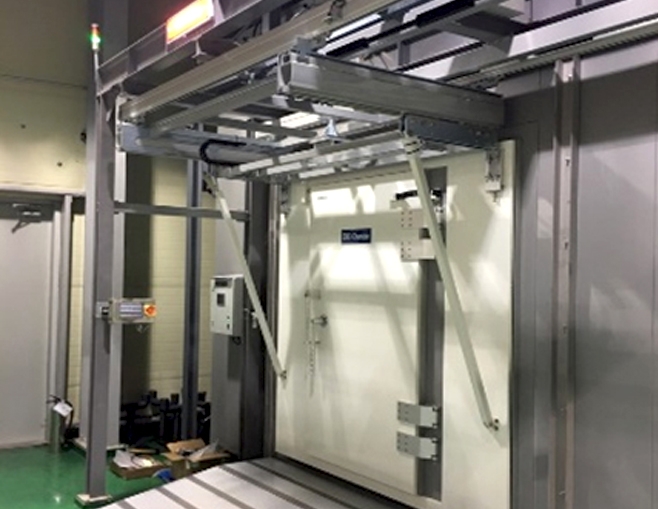

Dual Sliding & Swing Door

Fully Automatic
2000mmx2000mm (Swing : 900mm x 1800mm)
  • Sliding door with swing door mounted
  • Sliding Door for EUT entrance
  • Swing door for frequent access
Performance

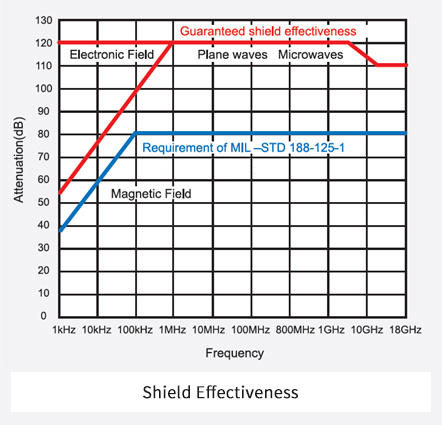

Shield Effectiveness : 100dB up to 40GHz
  • MIL-STD-188-125
  • MIL-STD-285
  • IEEE 299-1997
Optional Items

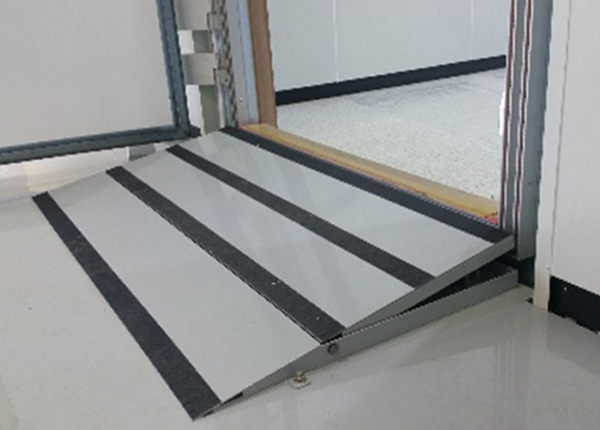

Auto Ramp System
  • Pneumatic/Hydraulic
  • Convenient access of heavy EUT
  • Bespoke design

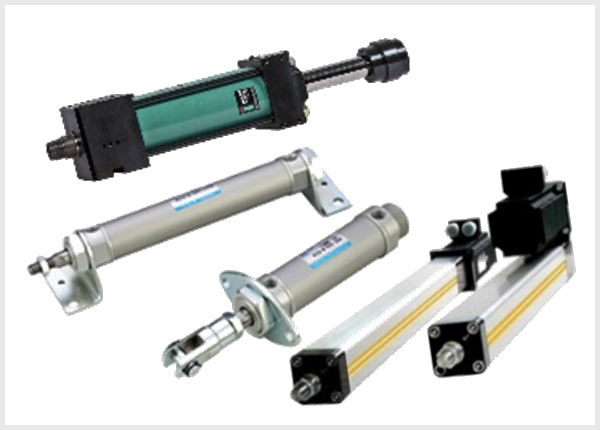

Actuator
  • Hydraulic
  • Pneumatic
  • Electric

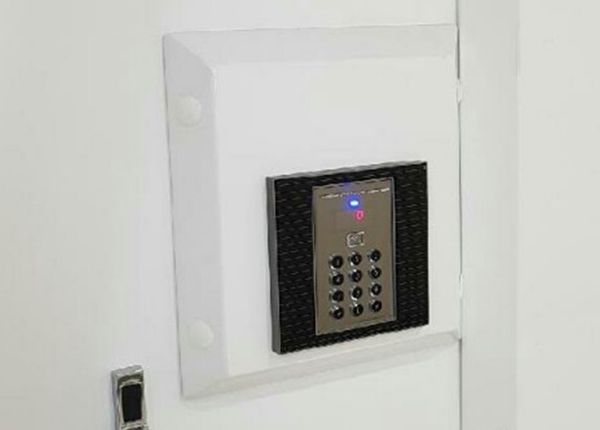

Access Control System
  • Security access control
  • Interface with fire protection system
  • Electronic Door Lock

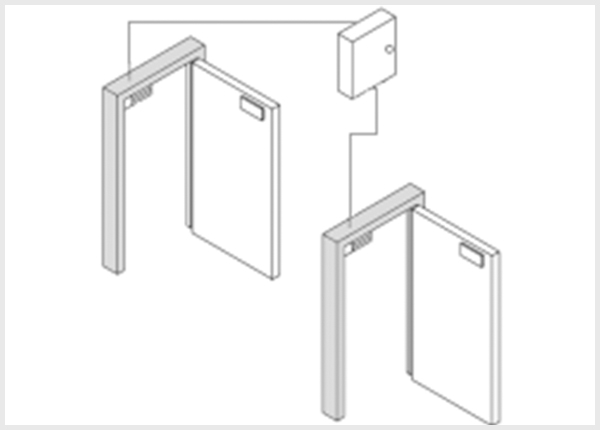

Interlocking System
  • Detect of door open & close
  • Ensure one of the doors remains closed
  • Electric motor
